Is a class to handle all possible DB operations for an Entity. Is used to
separate DAL logic from BS logic of application, It acts as a mediator between them.

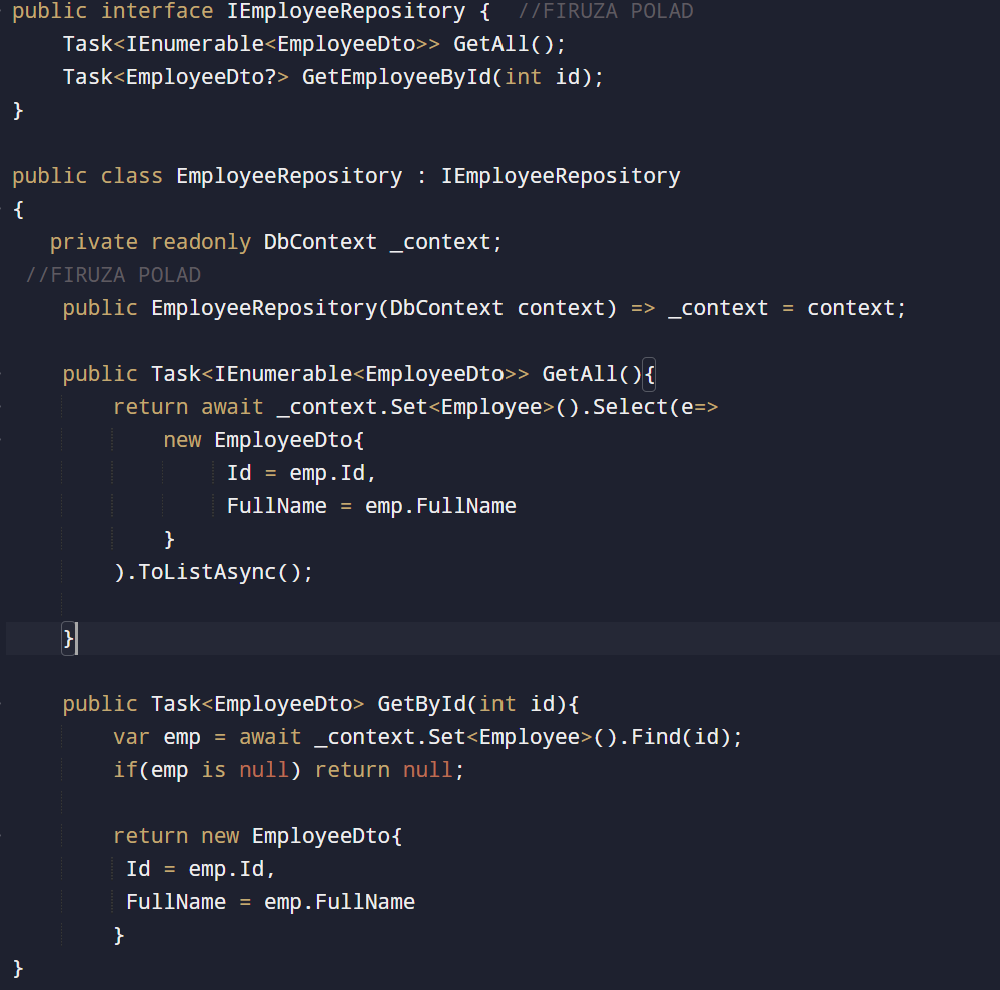

Example: Repository for Employee entities, define all CRUD operations and other operations
related to Employee. Provide a way to manage CRUD operations without directly interacting
with DB, instead of writing DB queries directly in BS logic, we use IEmployeeRepository and
EmployeeRepository class to handle, then EmployeeService in BL layer just depend on
IEmployeeRepository, not actual DB. So BS logic does not need to know if data coming from
DB, service or any source, just interacting with repository to handle task. Make code more
cleaner and flexible, easy to write unit testing. RP implemented in 2 ways:
Non-Generic Repository (one repository per Entity):Custom repository class
for each entity,
eg: UserRepository, EmployeeRepository.

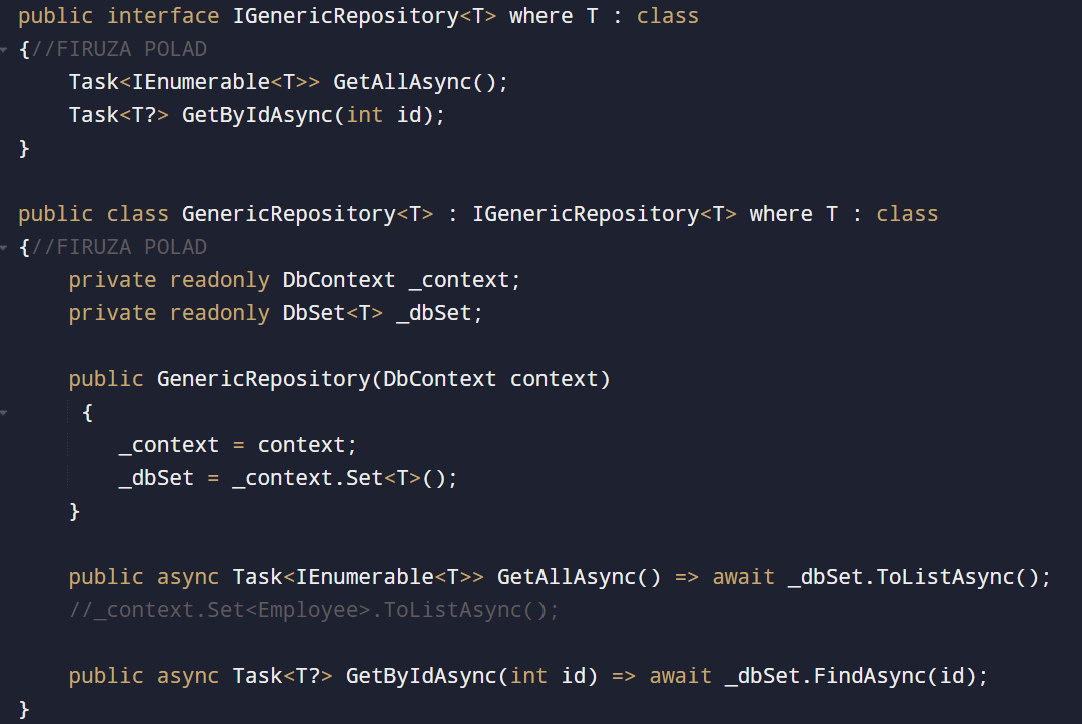

Generic Repository (one repository for all Entity): Is an implementation of
Repository pattern that allows us to create a single repository that can be used for
multiple entities. Instead of writing sperate repositories for each entity, GR uses a single
class with Generic type T parameter to handle CRUD. Simplifies DAL by
reducing duplicate
logic.

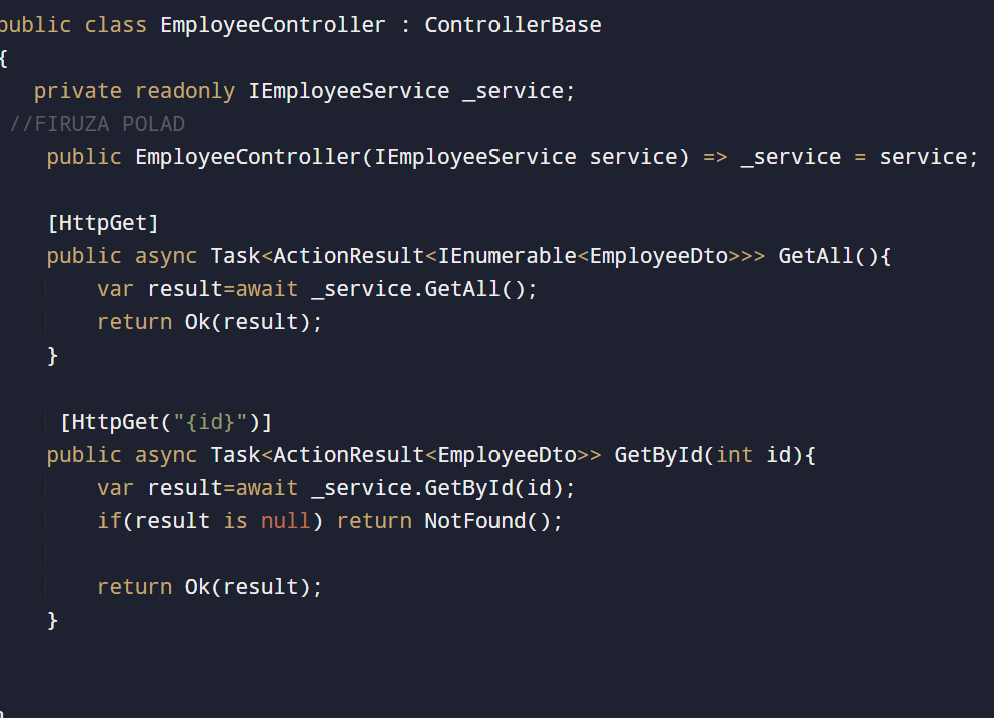

Controller (API Layer): Handles incoming HTTP requests and routes them to the
appropriate service methods. It acts as a bridge between the client (frontend) and the BL.
Example: GET `/api/employees/{id}` calls `EmployeeService.GetById(id)`.

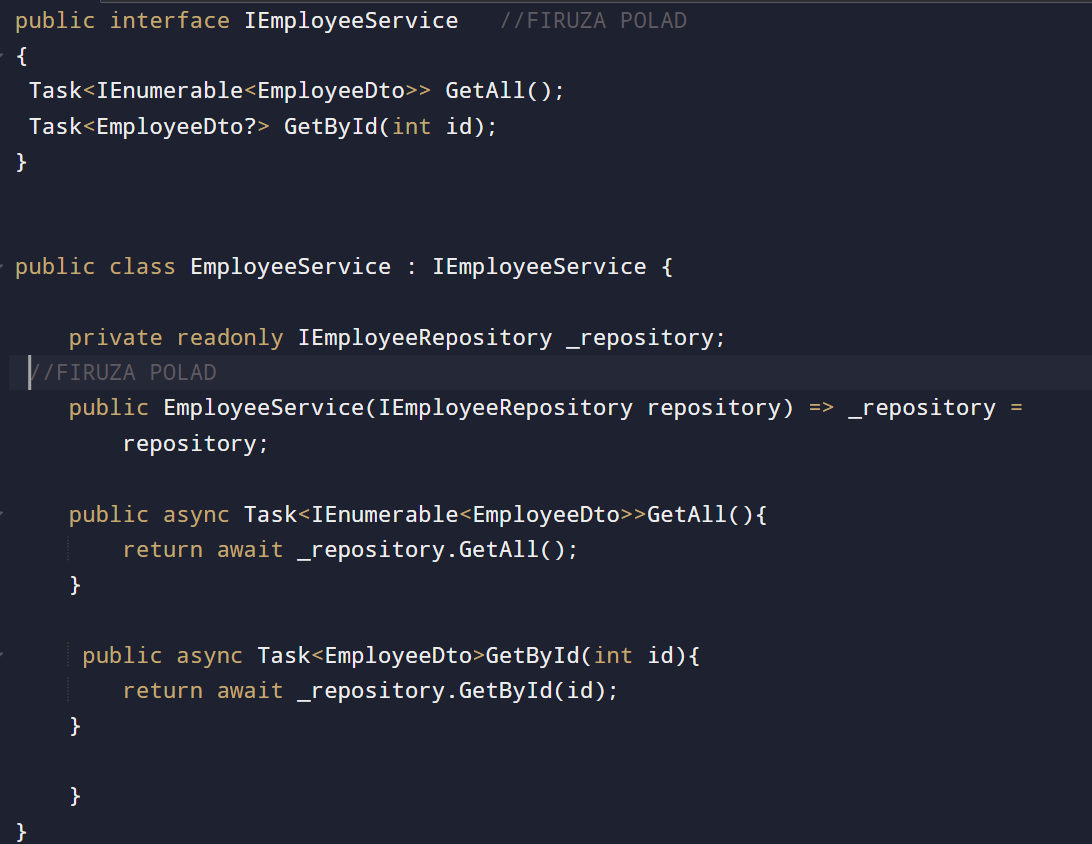

Service (Business Logic Layer): Contains the core business logic and coordinates
between the controller and the repository. Validates input, applies rules, and processes
data before passing to/from the data layer.
Repository (Data Access Layer):Handles all interactions with the database.
Encapsulates querying, inserting, updating, and deleting data.
It allows services to work with data without knowing the source
Entity + DTO:
-Entity: Represents the real database model (e.g., `Employee`) used with EF Core.
- DTO (Data Transfer Object): A simplified version of Entity for transferring data
between layers, especially to/from API.

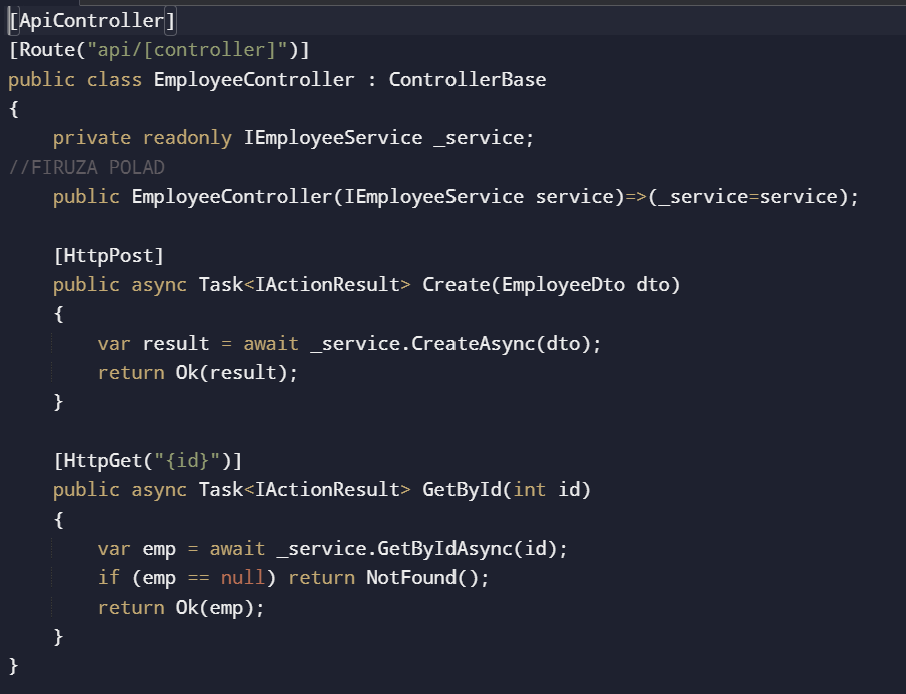

Controller (API Layer): This is the entry point of your application. It handles HTTP
requests and responses. Calls methods from the Service Layer to execute business logic

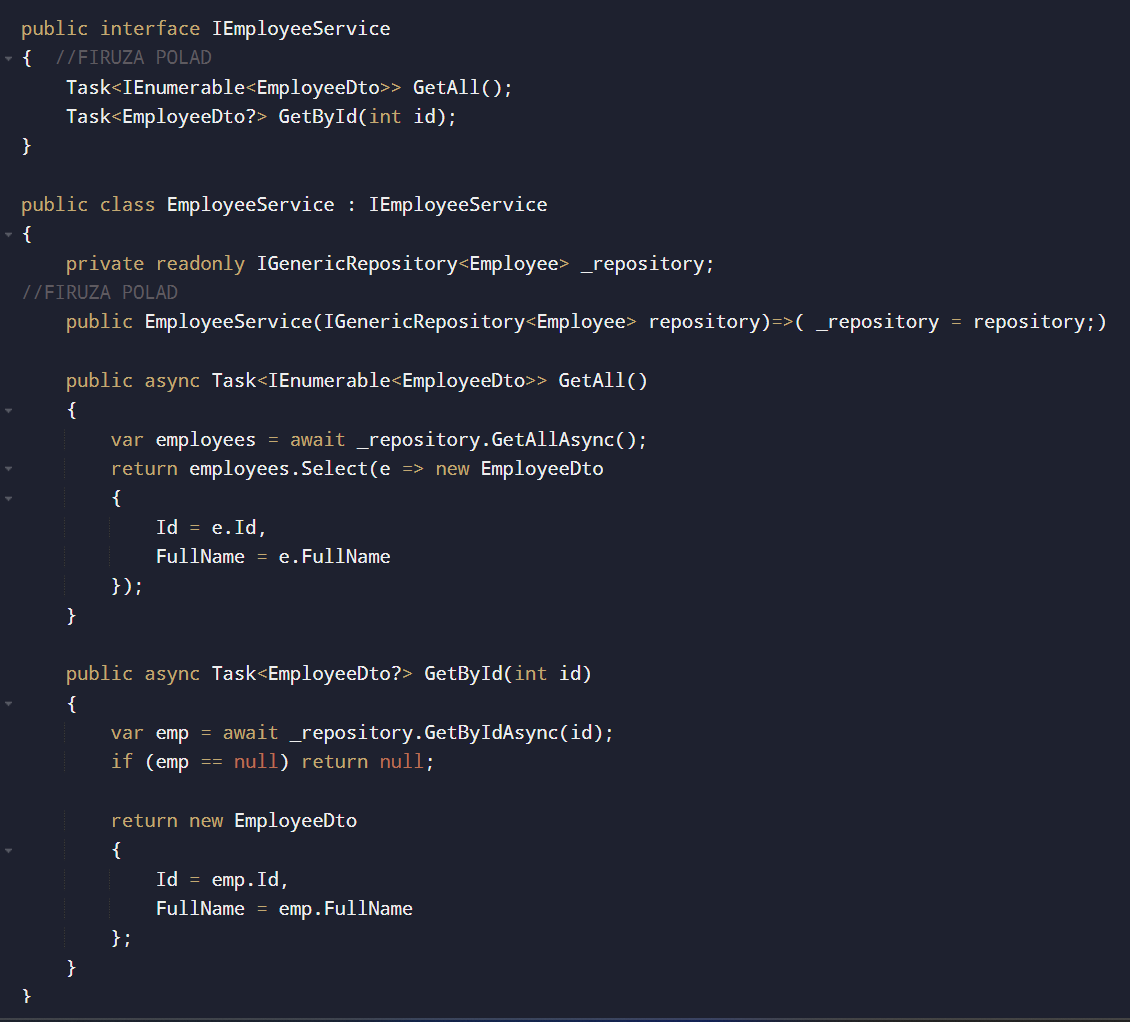

Service (Business Logic Layer): Contains business logic and rules for handling
application operations. Interacts with the Generic Repository to get or manipulate data.

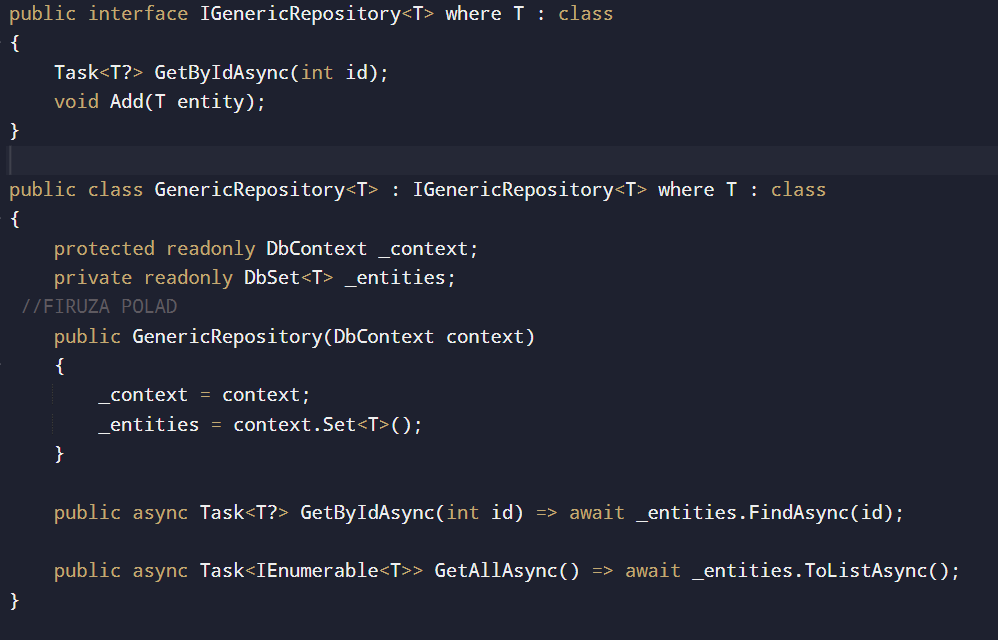

Repository (Data Access Layer): Generic Repository handles all CRUD operations for
any entity. You do not write a separate repository for each entity, ensure DRY principle.
Used to manage changes to multiple entities in a DB as a single Transaction
(operation). If we want to implement transaction while using EF and RP, then UOF can be
effective implementation of RP.
eg1: we are shopping and adding items to card, we don't want our order to be processed until
we are done shopping and ready to checkout, the process should either complete all at once
(everything in card purchased) or not at all (if something went wrong).
eg2: we have 2 account A (for debit card) and B (for credit card), money subtract from A and
added to B, both must succeed together. If one of these operations are failed, like Debit
operation is succeed but Credit operation is failed, then system could end up with incorrect
balances, and UOW ensure that both either succeed or failed together.
eg3: in application that interact with DB , we might be making multiple changes , such as
update profile while sending notification. The UOW group these changes together, when we are
ready then UOW 'commmit' changes, so they are either all applied to DB, or none of them. UOW
ensure that all operations completed successfully, reduce number of DB transaction by
grouping changes.

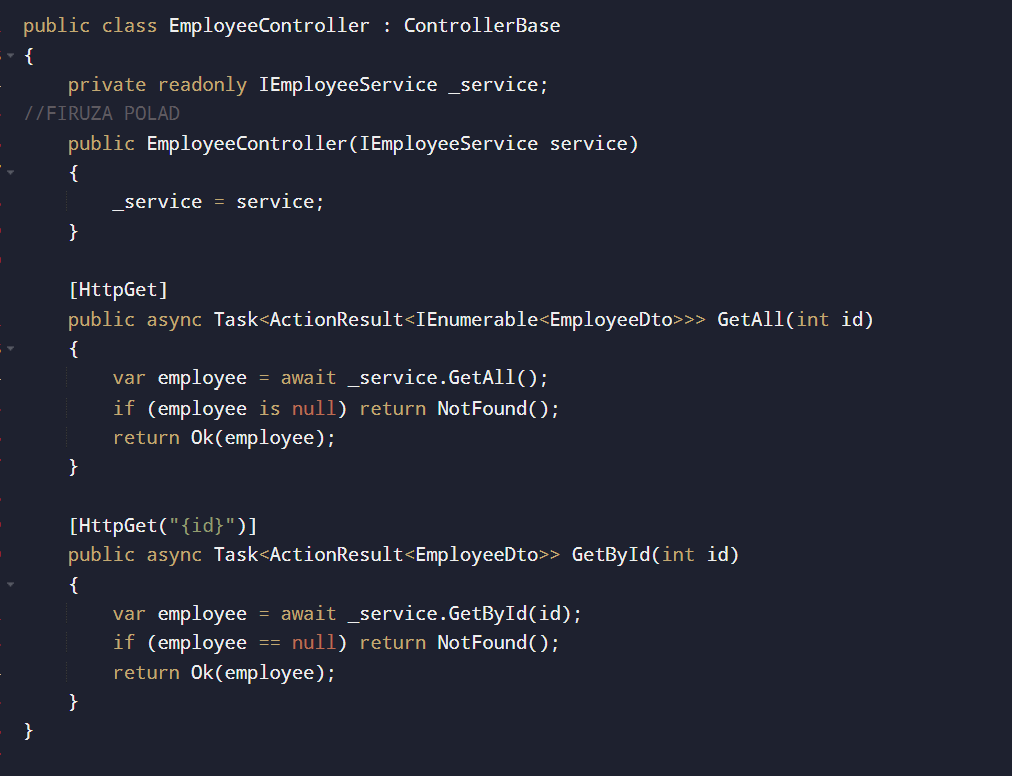

Controller (API Layer): This is the entry point of your application. It handles HTTP
requests and responses. Calls methods from the Service Layer to execute business logic

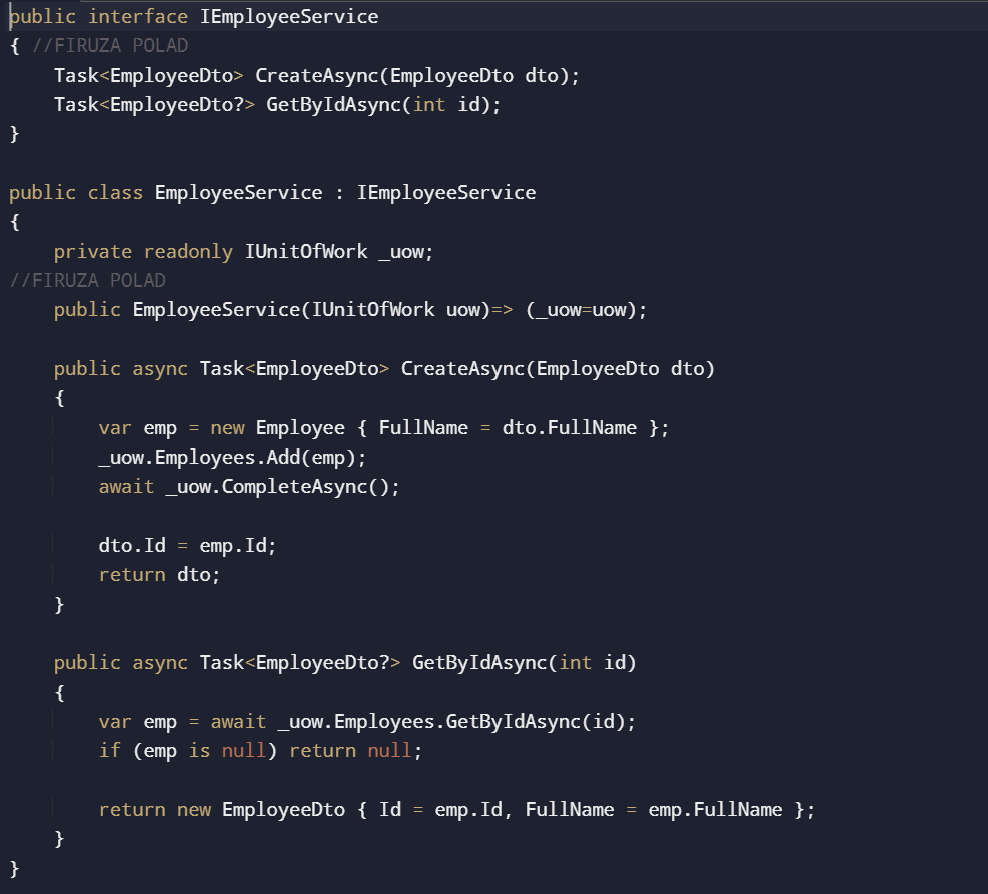

Service (Business Logic Layer): Uses UoW to coordinate multiple repository
operations.

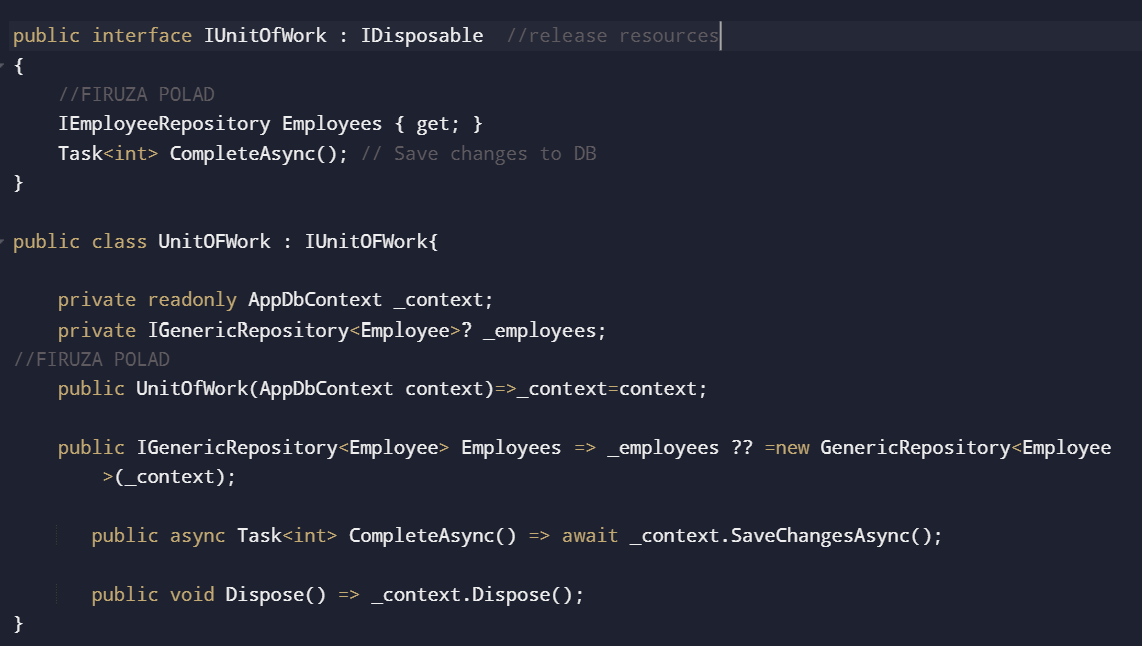

Repository (Data Access Layer+UOW): Repositories don’t call SaveChanges() directly.
Instead, they only perform data operation. The Unit of Work will call SaveChanges() once
after all repositories finish their operations.

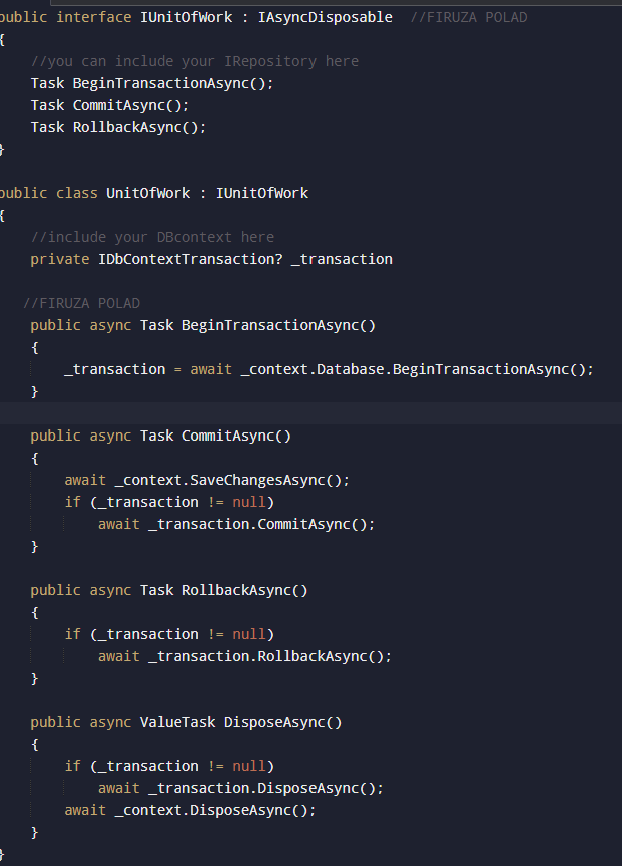

Is a set of operations performed as a single operation, it has properties often called ACID:

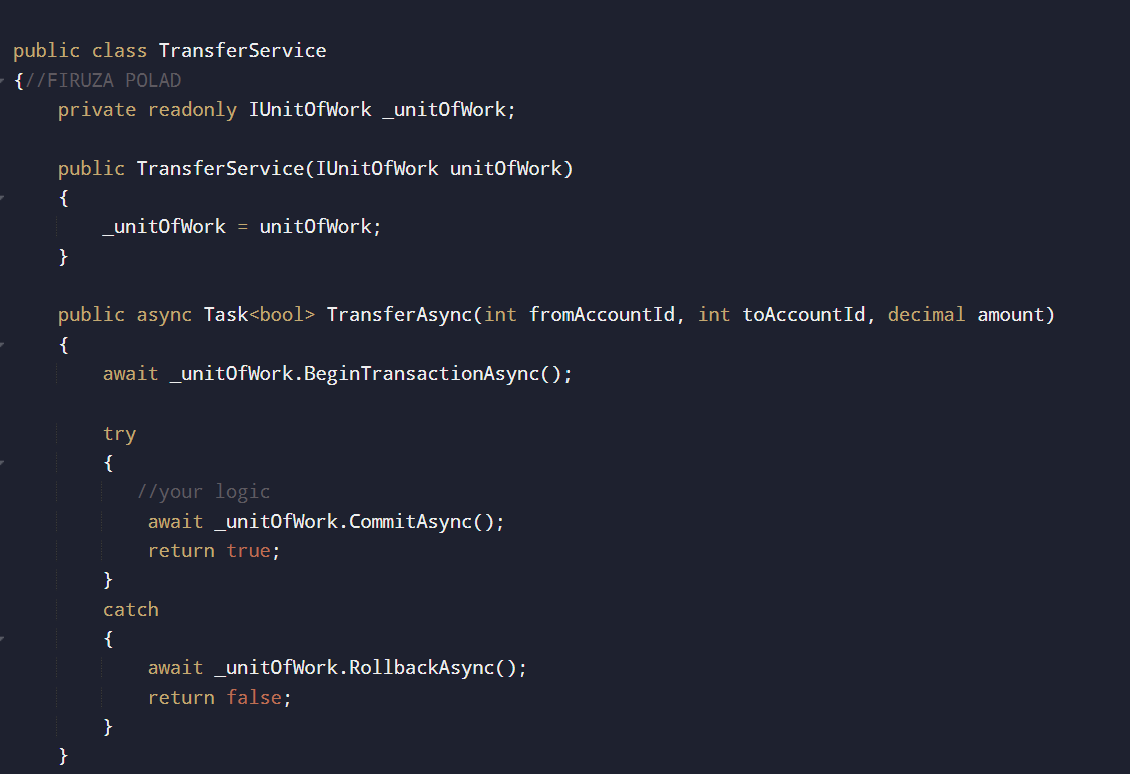

We want to transfer money between two accounts. If debit from Account A or credit to Account B fails, the transaction must roll back.
